The EKAMET metal jacketing system used for mechanical surface protection and weatherproofing in industrial plants or on commercial jobs, both interior and exterior.
The EKAMET system is rational and cost-saving, while factory-fabricated. All parts are easily combined with workshop shaped items. EKAMET is available in galvanised Steel or Aluminum. Stainless Steel and other metals or alloys on request.
Thumbnail
Product Name:
EKAMET Straight Jackets Image
0,
0,
,
EKAMET Straight Jackets,
EKAMET 90° Bend Image
0,
0,
,
EKAMET 90° Bend,
EKAMET 90° Tee Image
0,
0,
,
EKAMET 90° Tee,
EKAMET End Caps Image
0,
0,
,
EKAMET End Caps,
EKAMET Valve Box Image
0,
0,
,
EKAMET Valve Box,
EKAMET Tank Head Image
0,
0,
,
EKAMET Tank Head,

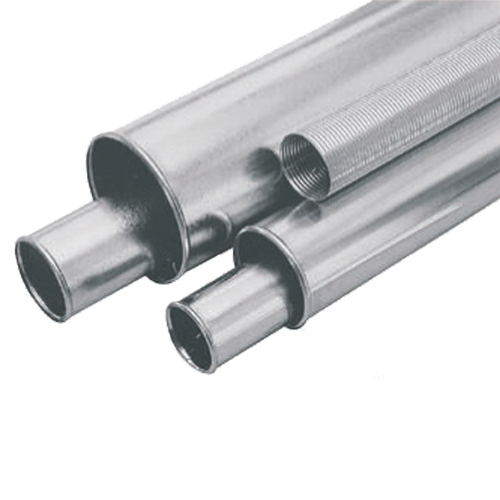

EKAMET Straight Jackets
EKAMET Straight Jackets Image

Round jackets, cylindrical rounded, length approx. 1 m
Standard :
– 1 x positive, 1 x negative swages for connection
– 6 screw-holes (Ø 3,2 mm) per jacket
– Overlapping: 3cm
– Suitable for EKAMET segment bends

On request: conical hole line, 10 screw-holes, drainage holes, slip-swages, special swages, special alloys, etc.

Standard material: galvanized steel and aluminum.

adobe-icon-24 Pricelist
adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET Straight Jackets,

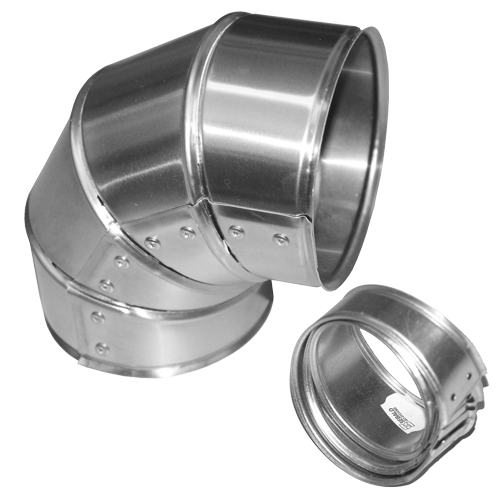

EKAMET 90° Bend
EKAMET 90° Bend Image

90° segment bend

Suitable for EKAMET straight jackets
Standard:
– C / E4-swage left descending
– 1 start and 1 end segment
Delivery form: single plugged segments, not screwed

On request: A, B and D swages, special bends, 45°-bends, flat segments, other number of segments, special alloys, etc.

Standard material: galvanized steel and aluminum.

adobe-icon-24 Pricelist
adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET 90° Bend,
EKAMET 90° Tee
EKAMET 90° Tee Image

90 Tee

Standard:
– Equal diameters
– Length of tee: 50mm up to the top of the main pipe
– Tail edge: approx. 10mm
– Overlapping: 30mm
– Screw-holes: Ø 3,2mm

Other models and alloys on request.
Standard material: galvanized steel and aluminum.

adobe-icon-24 Pricelist
adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET 90° Tee,

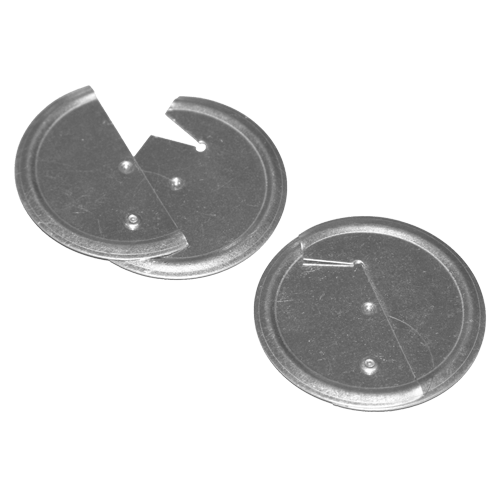

EKAMET End Caps
EKAMET End Caps Image

End Caps
Standard:
– 2 flipping pieces
– stability through circumferential swage
– Without hole for the pipe
– Packed in plastic bags

Other models and alloys on request.
Standard material: galvanized steel and aluminum.

adobe-icon-24 Pricelist
adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET End Caps,

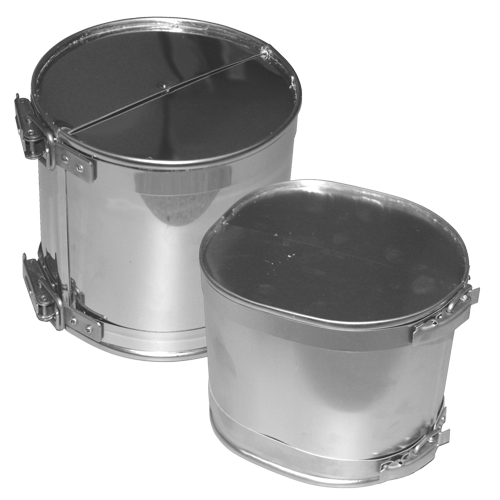

EKAMET Valve Box
EKAMET Valve Box Image

Valve boxes for different flange valves and flage-connections, without insulation material inside.

Standard:
– 2-half boxes, with 2 fixing straps
– The top of the box is closed to the jacket
– Rounded edges
– Without holes and fixing clings for insulation

On request: Special forms and designs, flat sides, multipart boxes, special alloys, other metal thickness, etc.

The EKAMET Boxes are nun-standard products and manufactured according your drawings.

Standard material: galvanized steel and aluminum

adobe-icon-24 Pricelist galvanized steel
adobe-icon-24 Pricelist aluminum
adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET Valve Box,

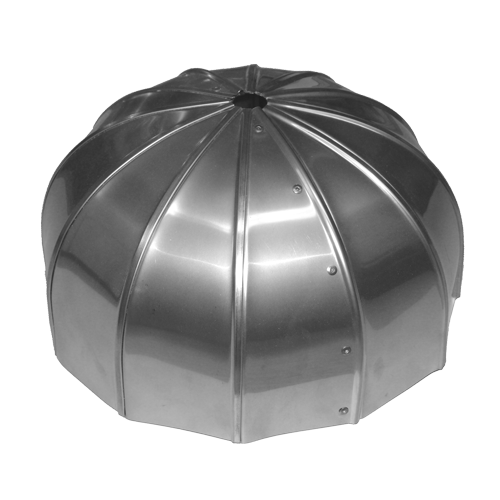

EKAMET Tank Head
EKAMET Tank Head Image

EKAMET heads for tanks

Standard material: galvanized steel and aluminum

adobe-icon-24 Datasheet galvanized steel
adobe-icon-24 Datasheet aluminum

0,
0,
,
EKAMET Tank Head,
